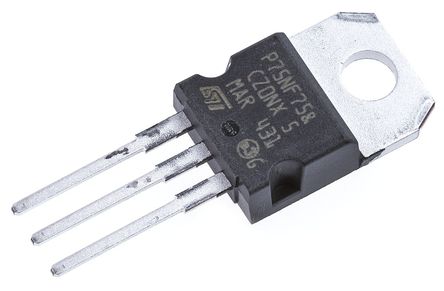

STP75NF75 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC348627
Category:
MOSFET, MOSFET Transistor
Package:
TO-220-3
Datasheet:
Datasheet 3D Model
Description:
N-CHANNEL 75V - 0.0095Ω - 80A TO-220/TO-220FP/DPAK STripFET⑩ II POWER MOSFET
Stock Locations:
Availability:
4 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.43

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STP75NF75 is a 75V N-channel STripFET™ II Power MOSFET realized with unique STripFET process. It has specifically been designed to minimize input capacitance and gate charge. It is therefore suitable as primary switch in advanced high efficiency isolated DC-DC converters for telecom and computer application. It is also intended for any application with low gate charge drive requirements. Improved gate charge and lower power dissipation to meet today"s challenging efficiency requirements.
Exceptional dv/dt capability
100% Avalanche tested

Show

STP75NF75 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	75.0 V
Current Rating	80.0 A
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.0095 Ω
Polarity	N-Channel
Power Dissipation	300 W
Threshold Voltage	3 V
Drain to Source Voltage (Vds)	75 V
Breakdown Voltage (Drain to Source)	75.0 V
Breakdown Voltage (Gate to Source)	±20.0 V
Continuous Drain Current (Ids)	80.0 A
Rise Time	25.0 ns
Input Capacitance (Ciss)	3700pF @25V(Vds)
Input Power (Max)	300 W
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature (Max)	175 ℃
Power Dissipation (Max)	300W (Tc)
	Show
Size-Length	10.4 mm
Size-Width	4.6 mm
Size-Height	9.15 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
ECCN Code	EAR99
