Attribute | Attribute Value |
---|---|
Datasheet | Datasheet |
3D Model | 3D Model |
Mounting Style | Surface Mount |
Number of Pins | 14 Pin |

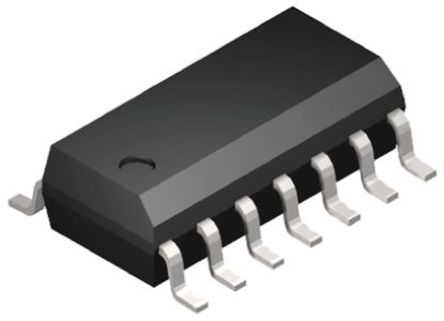

Case/Package | SOIC-14 |
Supply Current | 2 mA |
Number of Circuits | 4 Circuit |
Number of Channels | 4 Channel |
Number of Positions | 14 Position |
Common Mode Rejection Ratio | 100 dB |
Input Offset Drift | 2.00 µV/K |
Bandwidth | 18 MHz |
Slew Rate | 10.0 V/μs |
Gain Bandwidth Product | 18 MHz |
Thermal Shutdown | No |
Input Offset Voltage | 1.5 mV |
Operating Temperature (Max) | 85 ℃ |
Operating Temperature (Min) | -40 ℃ |
Gain Bandwidth | 18 MHz |
Minimum CMRR Range | 100 dB |
Supply Voltage | 4.5V ~ 36V |
Show | |
Size-Length | 8.75 mm |
Size-Width | 4 mm |
Size-Height | 1.5 mm |
Operating Temperature | -40℃ ~ 85℃ |
Product Lifecycle Status | Active |
Packaging | Each |
RoHS | RoHS Compliant |
Lead-Free Status | Lead Free |
REACH SVHC Compliance | No SVHC |
REACH SVHC Compliance Edition | 2015/06/15 |
