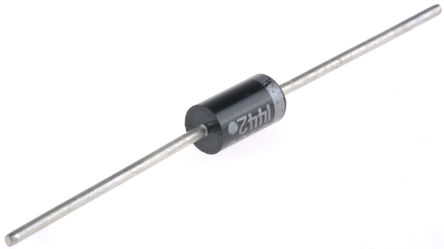

Image is for your reference only,please check specifications for details

1N5408RLG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC700285
Category:
TVS Diode
Package:
DO-201AD
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR 1N5408RLG Standard Power Diode, 1kV, 3A, Single, 1V, 200A
Stock Locations:
Availability:
9,955 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.14

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The 1N5408RLG is a standard Recovery Rectifier with moulded epoxy case. It has solderable axial leads. It is suitable for use in power supplies and other applications.
Cathode is indicated by polarity band
High current to small size
High surge current capability
Low forward voltage drop

Show

1N5408RLG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-201AD
Voltage Rating (DC)	1.00 kV
Current Rating	3.00 A
Halogen Free Status	Halogen Free
Output Current	≤3.00 A
Number of Positions	2 Position
Forward Voltage	1V @3A
Polarity	Standard
Thermal Resistance	53℃/W (RθJA)
Forward Current	3 A
Max Forward Surge Current (Ifsm)	200 A
Maximum Forward Voltage (Max)	1 V
Forward Current (Max)	3 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	9.5 mm
Size-Width	5.3 mm
Size-Height	5.3 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
