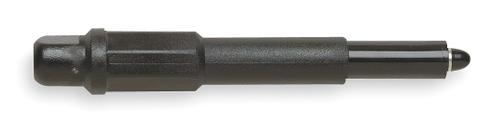

Image is for your reference only,please check specifications for details

122505A - Pomona Electronics
Manufacturer:
Pomona Electronics
ManyChip's Part#:
MC27765273
Category:
Banana Plug Connector
Datasheet:
Datasheet 3D Model
Description:
POMONA 122505A Banana Test Connector, Plug, Cable Mount, 20A, 1kV, Nickel Plated Contacts, Black
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Retractable Sheath Banana Plug, Lucel Acetal Polymer Insulation
* Ideal for creating a special patch cord length
Retractable sheath banana plug use in sheathed and non-sheathed style of banana jacks.

Show

122505A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Solder
Number of Contacts	1 Contact
Gender	Male
Wire Gauge	18AWG ~ 22AWG
Contact Plating	Nickel
Voltage Rating (DC)	1.50 kV
Current Rating	20 A
Number of Positions	1 Position
Current Rating (Max)	20 A
Operating Temperature (Max)	80 ℃
Operating Temperature (Min)	-10 ℃
Voltage Rating	1 kV
	Show
Size-Diameter	9.91 mm
Housing Color	Black
Color	Black
Contact Material	Beryllium Copper
Operating Temperature	-10℃ ~ 80℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8536694050
ECCN Code	EAR99
