Description

Mosorb devices are designed to protect voltage sensitive components from high voltage, high-energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. These devices are ON Semiconductor’s exclusive, cost-effective, highly reliable Surmetic axial leaded package and are ideally-suited for use in communication systems, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications, to protect CMOS, MOS and Bipolar integrated circuits.

Show

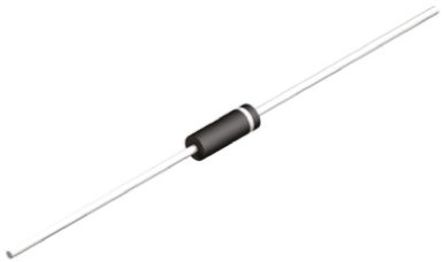

1N6285AG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-201AD
Voltage Rating (DC)	39.0 V
Operating Voltage	33.3 V
Current Rating	28.0 A
Power Rating	1.50 kW
Halogen Free Status	Halogen Free
Breakdown Voltage	37.1 V
Number of Positions	2 Position
Power Dissipation	1500 W
Clamping Voltage	53.9 V
Max Repetitive Reverse Voltage (Vrrm)	33.3V
Test Current	1 mA
Max Breakdown Voltage	41 V
Peak Pulse Power	1500 W
Min Breakdown Voltage	37.1 V
Reverse Breakdown Voltage	37.1 V
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	-65℃ ~ 175℃
	Show
Size-Length	9.5 mm
Size-Diameter	5.30 mm
Operating Temperature	-65℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
