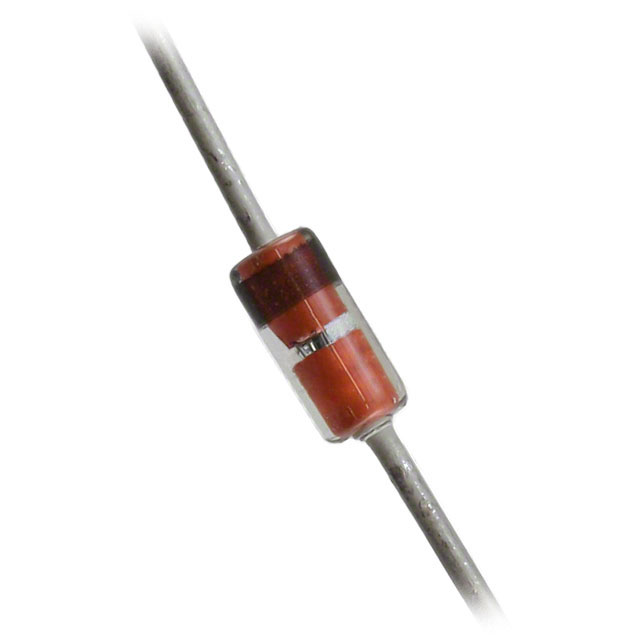

Image is for your reference only,please check specifications for details
- 1N969B - Fairchild
-
Manufacturer:Fairchild
-
ManyChip's Part#:MC162205840
-
Category:Zener Diode, Zener
-
Package:DO-35-2
-
Datasheet:Datasheet 3D Model
-
Description:ДИОД СТАБИЛИТРОН, 22В, 0.5Вт (1/2Вт), DO35; Напряжение стабилизации Vz типовое: 22В; Рассеиваемая мощность Pd: 500мВт; Диапазон рабочих температур: -...
-
Stock Locations:
-
Availability:256 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.04
Updated at 22/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Стабилитрон 22В 500мВт ±5% выводной монтаж DO-35
1N969B Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 2 Pin |
| Case/Package | DO-35-2 |
| Voltage Rating (DC) | 22.0 V |
| Capacitance Tolerance | ±5 % |
| Power Rating | 500 mW |
| Number of Positions | 2 Position |
| Power Dissipation | 500 mW |
| Test Current | 5.6 mA |
| Zener Voltage | 22 V |
| Rating Power (Max) | 500 mW |
| Operating Temperature (Max) | 200 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Show | |
| Size-Length | 4.56 mm |
| Size-Width | 1.91 mm |
| Size-Height | 1.91 mm |
| Operating Temperature | -65℃ ~ 200℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
