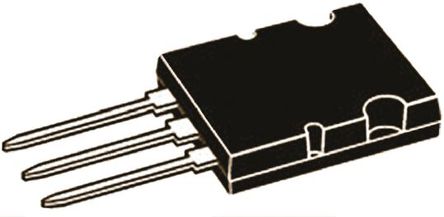

Image is for your reference only,please check specifications for details

IXYB82N120C3H1 - IXYS Semiconductor
Manufacturer:
IXYS Semiconductor
ManyChip's Part#:
MC50449133
Category:
IGBT Transistor, IGBT Module
Package:
TO-264-3
Datasheet:
Datasheet 3D Model
Description:
IXYS SEMICONDUCTOR IXYB82N120C3H1 IGBT Single Transistor, 164A, 2.75V, 1.04kW, 1.2kV, TO-264AA, 3Pins New
Stock Locations:
Availability:
252 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 24.11

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

IXYB82N120C3H1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-264-3
Number of Positions	3 Position
Power Dissipation	1.04 kW
Breakdown Voltage (Collector to Emitter)	1200 V
Reverse recovery time	420 ns
Input Power (Max)	1040 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1.04 kW
	Show
Size-Length	20.29 mm
Size-Width	5.31 mm
Size-Height	26.59 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2016/06/20
