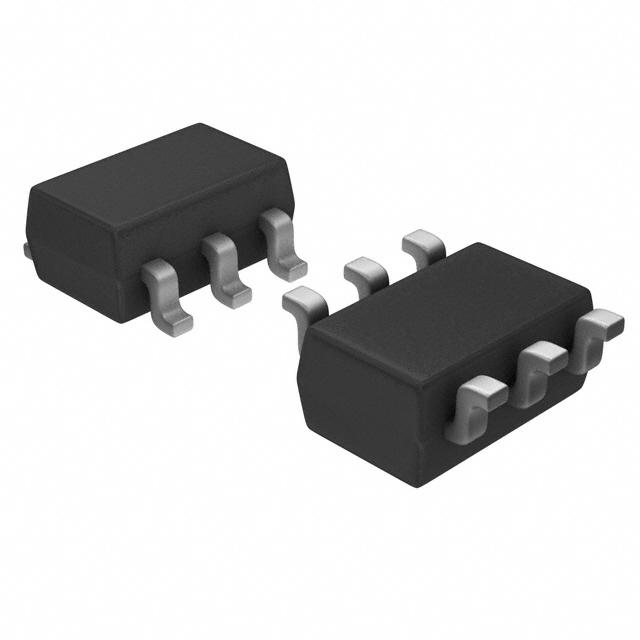

Image is for your reference only,please check specifications for details
- 1P1G3157QDBVRQ1 - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC14263896
-
Category:Interface IC, Interface Controller
-
Package:SOT-23-6
-
Datasheet:Datasheet 3D Model
-
Description:Analog Switch, Single Channel, SPDT, 1Channels, 15Ω, 1.65V to 5.5V, SOT-23, 6Pins
-
Stock Locations:
-
Availability:3,743 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.54
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The SN74LVC1G3157-Q1 device is a single-pole double-throw (SPDT) analog switch designed for 1.65-V to 5.5-V VCC operation.
- The SN74LVC1G3157 device can handle analog and digital signals. The device permits signals with amplitudes of up to VCC (peak) to be transmitted in either direction.
- Applications include signal gating, chopping, modulation or demodulation (modem), and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.
1P1G3157QDBVRQ1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SOT-23-6 |
| Supply Voltage (DC) | 1.65V ~ 5.50V |
| Number of Outputs | 2 Output |
| Contacts Type | SPDT |
| Supply Current | 1 µA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 1 Channel |
| Number of Positions | 6 Position |
| Number of Bits | 2 Bit |
| Propagation Delay Max (tpd) | 300 ps |
| Voltage Nodes | 5.00 V, 3.30 V, 2.50 V, 1.80 V |
| Bandwidth | 300 MHz |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 300 MHz |
| Supply Voltage | 1.65V ~ 5.5V |
| Show | |
| Size-Height | 1.3 mm |
| Operating Temperature | -40℃ ~ 125℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HK STC License | NLR |
