Description

This complete new line of 1.5 Watt Zener Diodes offers the following advantages.
Features
• Standard Zener Breakdown Voltage Range − 3.3 V to 68 V
• ESD Rating of Class 3 (>16 kV) per Human Body Model
• Flat Handling Surface for Accurate Placement
• Package Design for Top Slide or Bottom Circuit Board Mounting
• Low Profile Package
• Ideal Replacement for MELF Packages
• Pb−Free Packages are Available

Show

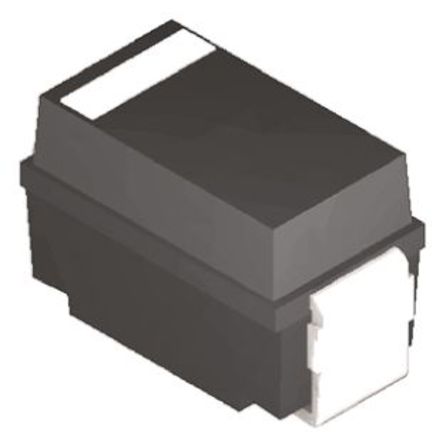

1SMA5942BT3G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SMA-2
Voltage Rating (DC)	51.0 V
Capacitance Tolerance	±5 %
Power Rating	1.50 W
Halogen Free Status	Halogen Free
Number of Positions	2 Position
Forward Voltage	1.5V @200mA
Power Dissipation	1.5 W
Test Current	7.3 mA
Zener Voltage	51 V
Maximum Forward Voltage (Max)	1.2 V
Input Power (Max)	1.5 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	1.5 W
	Show
Size-Length	4.32 mm
Size-Width	2.6 mm
Size-Height	2 mm
Operating Temperature	-65℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
