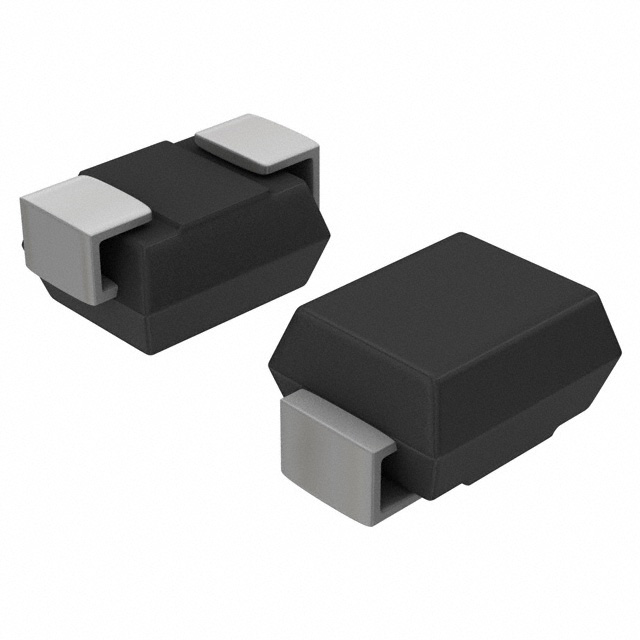

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

1SMB15CAT3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	DO-214AA
Voltage Rating (DC)	15.0 V
Power Rating	600 W
Breakdown Voltage	17.6 V
Max Repetitive Reverse Voltage (Vrrm)	15V
Peak Pulse Power	600 W
Min Breakdown Voltage	16.7 V
	Show
Size-Length	4.57 mm
Size-Width	3.81 mm
Size-Height	2.41 mm
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Obsolete
Packaging	Cut Tape (CT)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99
