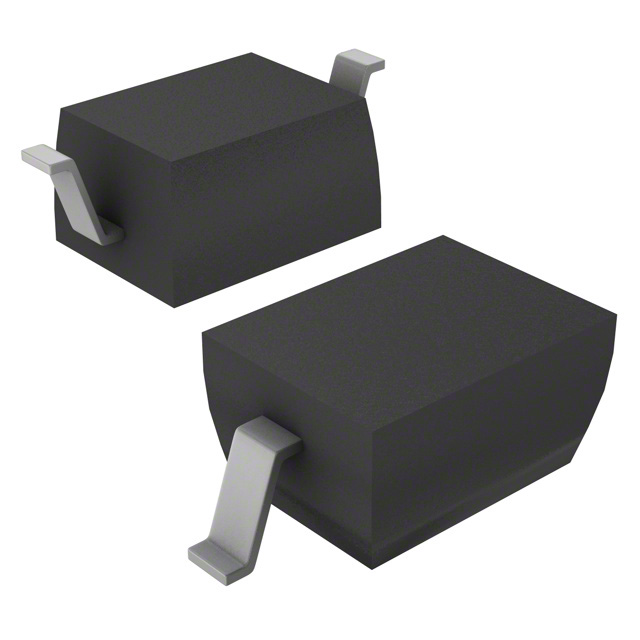

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- FEATURES •TOSHIBA Diode Silicon EpitAxiAl PlAnAr Type •VHF TUNER bAnd switch ApplicAtions •SmAll pAckAge •SmAll totAl cApAcitAnce •low series resistAnce
1SS314 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 2 Pin |
| Case/Package | SOD-323 |
| Forward Current (Max) | 100 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Show | |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
