20SEPF390M Panasonic - Capacitor - ManyChip Electronics

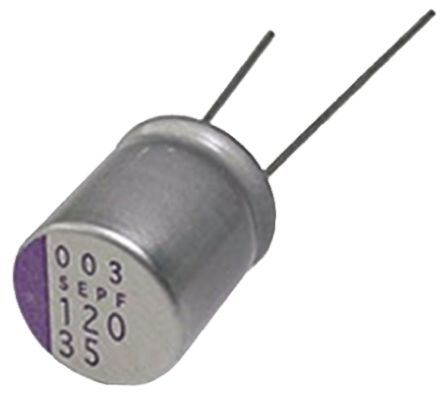

Image is for your reference only,please check specifications for details

20SEPF390M - Panasonic
Manufacturer:
Panasonic
ManyChip's Part#:
MC43278492
Category:
Capacitor
Package:
Radial, CAN
Datasheet:
Datasheet 3D Model
Description:
Конденсатор алюминиевый полимерный 390 мкФ 20 В пост. тока 20% (8 x 12 мм) радиальный 3,5 мм 0,014 Ом 4950 мА 5000 ч 105 °C лента и катушка
Stock Locations:
Availability:
221 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.85

Updated at 16/09/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Благодаря Panasonic и их твердотельному алюминиево-полимерному конденсатору 20SEPF390M вы можете быть уверены, что ваша интегральная схема будет защищена от внезапных изменений нагрузки. Он выдерживает напряжение 20 В постоянного тока. Пользователям нравится его длинная форма выводов. Диаметр вывода этой детали составляет 0,6 мм. У него 2 вывода. Шаг выводов этого изделия составляет 3,5 мм. Его ток утечки составляет 1560 мкА за 2 мин. Высота этого изделия составляет 12 (макс.) мм, диаметр — 8 мм. Этот твердотельный алюминиево-полимерный конденсатор имеет минимальную рабочую температуру -55 °C и максимальную 105 °C. Допуск составляет 20%. Твердотельный алюминиево-полимерный конденсатор 20SEPF390M имеет радиальный тип выводов.

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial, CAN
Pin Pitch	3.5 mm
Voltage Rating (DC)	20 V
Capacitance	390 µF
Equivalent Series Resistance (ESR)	14 mΩ
Capacitance Tolerance	±20 %
Ripple Current	4950 mA
Ripple Current (Low Frequency)	247.5mA @120Hz
Ripple Current (High Frequency)	4.95A @100kHz
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	20 V
	Show
Size-Length	12 mm
Size-Height	12 mm
Size-Diameter	8.00 mm
Operating Temperature	-55℃ ~ 105℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
Life (Hours)	5000 h
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
HTS Code	8532220020
ECCN Code	EAR99
