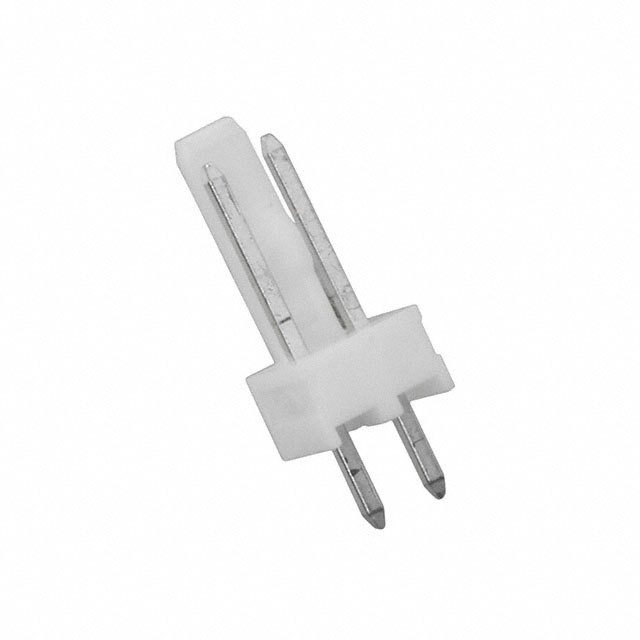

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

22272021 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	Through Hole
Number of Contacts	2 Contact
Number of Rows	01 Row
Current Rating (Max)	4A/触头
Maximum Contact Resistance (Max)	10 mΩ
	Show
Size-Height	11.7 mm
Housing Color	White
Color	Natural
Contact Material	Brass
Packaging	Bulk
RoHS	RoHS-conform
Lead-Free Status	Lead Free
ECCN Code	EAR99
