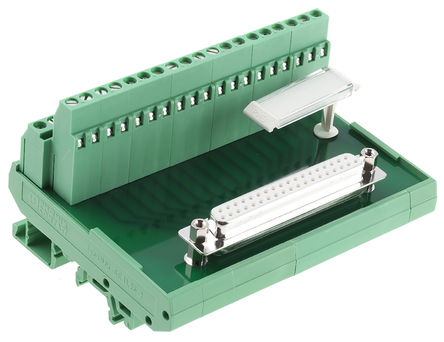

Image is for your reference only,please check specifications for details
- 2281212 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC45838870
-
Category:D-Sub Connector, D-Sub Standard Connector, Connector D-Subminiature
-
Datasheet:Datasheet 3D Model
-
Description:Module, D-Subminiature; 37; Pluggable; Screw Connector; 24AWG; 2.5A (Max.)
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- With these VARIOFACE modules, signal lines with D-subminiature pin or socket strips in accordance with IEC 807-2/ DIN 41 652 can be connected to screw terminal blocks for conductor cross sections up to 2.5 mm2.
2281212 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | PCB |
| Number of Contacts | 37 Contact |
| Wire Gauge | 12AWG ~ 24AWG |
| Operating Voltage | 125 V |
| Current Rating | 2.5 A |
| Contact Current Rating | 2.5 A |
| Current Rating (Max) | 2.5A/触头 |
| Operating Temperature (Max) | 50 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Voltage Rating | 125 V |
| Show | |
| Size-Length | 101.30 mm |
| Size-Width | 58.5 mm |
| Size-Height | 58.5 mm |
| Color | Green |
| Operating Temperature | -20℃ ~ 50℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536904000 |
| ECCN Code | EAR99 |
