Image is for your reference only,please check specifications for details
- 2315201 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC41886592
-
Category:Terminal Block, Connector Terminal
-
Datasheet:Datasheet 3D Model
-

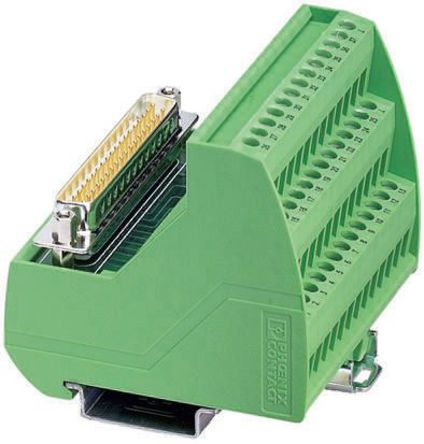

Description:"Phoenix 2315201 VIP-3/SC/D50SUB/F Interface Module 2A, 125V AC-DC, M3 Screwed/D-SUB Socket Strip Connection, "
-
Stock Locations:
-
Availability:281 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 141.88
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- FTAs are the next generation of passive, discrete wiring. These UL508 recognized FTAs are ideal for applications that require fast, fault-free field device connection to process or motion controllers. The patented module design integrates a channel that utilizes the full range of ZB holders, resulting in flexible module marking options. To simplify wire termination, field I/O marking is easily accessible on the screw connection surface. The module features a metal mounting foot that moves along the length of the product for easy mounting and disconnecting. This D-Sub FTAS allows signal lines with D-subminiature or sockets strips to be connected to screw terminal blocks in accordance with IEC 807-2/DIN 41 652. Conductor sizes of up to 2.5 mm2 can be accommodated and both male and female variants are available. These FTAS" are UL 508 recognized.
2315201 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Number of Contacts | 50 Contact |
| Wire Gauge | 12AWG ~ 24AWG |
| Current Rating | 2 A |
| Number of Positions | 50 Position |
| Contact Current Rating | 2 A |
| Current Rating (Max) | 1 A |
| Operating Temperature (Max) | 50 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Voltage Rating (Max) | 125 V |
| Voltage Rating | 125 V |
| Show | |
| Size-Length | 98.20 mm |
| Size-Width | 98.2 mm |
| Size-Height | 69 mm |
| Color | Green |
| Operating Temperature | -20℃ ~ 50℃ |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
