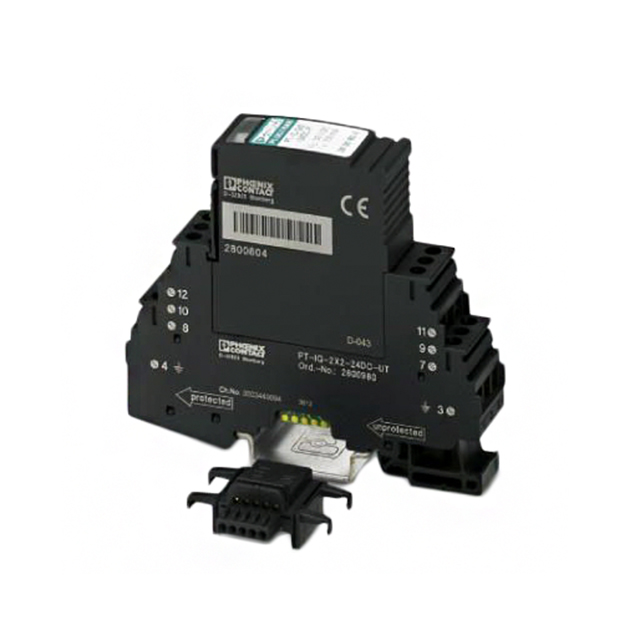

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- PT-IQ is the new MCR surge protection device. It is re-engineered with multi-stage remote monitoring and status reporting capability with reliable T-Bus connection.
- With new design features and proactive functional monitoring, PT-IQ stands out as a unique, intelligent MCR surge protection device. It prevents unnecessary maintenance by providing alerts so that the user knows when to replace plugs before they reach their performance limit. PT-IQ ensures system availability with excellent signal quality.
- **Real time — Multi-Stage Proactive Functional Monitoring:**
- * Red Signal — Overload Condition, SPD Stops Functioning Plug, Replacement Required
- * Yellow Signal — Reached Performance Limit, Replacement Recommended to Avoid Unnecessary Service
- * Green Signal — Approved Protection; SPD Functions to the Designed Specifications
- * Fast and Clear Identification of Status Onsite
- * Controller Monitors and Sends Status Reports to the Control Room
- * Error Message in Case of Incomplete Assembly
- * Real-Time, Multi-Stage Monitoring and Plug Replacement Beforehand Prevents Unnecessary Servicing
- **Pluggable to Perfection:**
- * Impedance Neutral Plugging
- * Insulation Measurement without Disconnection
- * Snap-Lock Mechanism for Easy Plugging/Unplugging
- **Reliable Power and Data Transmission:**
- * T-Bus Connection for Power and Data Transmission
- * Easy and Error-Free Installation
- * Fast and Automatic Integration of SPDs without Wiring
- **Protection, shield connection and unlimited extension:**
- * Protection of Up-to-Five Signal Wires
- * Available in Floating and Directly Grounded Shield Connections
- * Reduced Installation Cost — One Power Terminal Block Powers 28 SPDs
2800980 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Current Rating | 700 mA |
| Capacitance | 2 nF |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 24 V |
| Show | |
| Size-Length | 77.5 mm |
| Size-Width | 17.7 mm |
| Size-Height | 91 mm |
| Operating Temperature | -40℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536308000 |
| ECCN Code | EAR99 |
