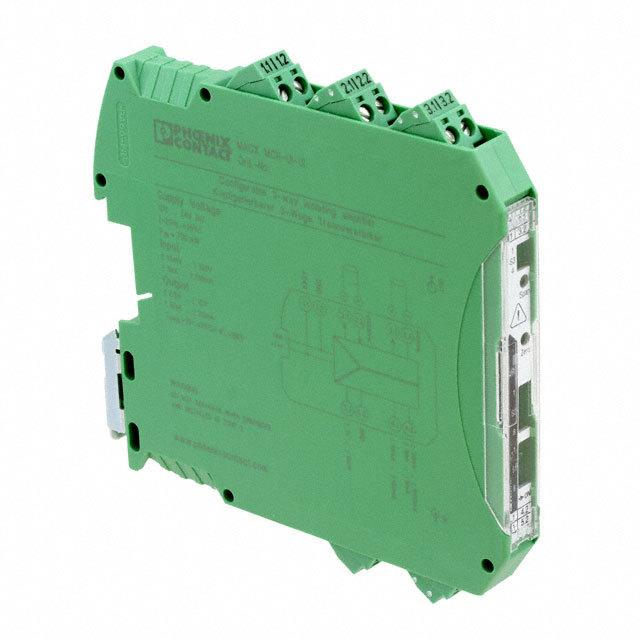

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Configurable Analog 3 way isolation Amplifier**
- **Featured List:**
- * Configurable input and oytput signals
- * 3 way isolation
- * Low power consumption
- * Power supply possible through the foot element (T-Connector)
2811446 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Snap-In |
| Case/Package | 100 |
| Number of Outputs | 1 Output |
| Number of Channels | 1 Channel |
| Number of Positions | 3 Position |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Supply Voltage | 12VDC ~ 24VDC |
| Show | |
| Size-Width | 12.5 mm |
| Size-Height | 99 mm |
| Color | Green |
| Operating Temperature | -20℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8543709650 |
| ECCN Code | EAR99 |
