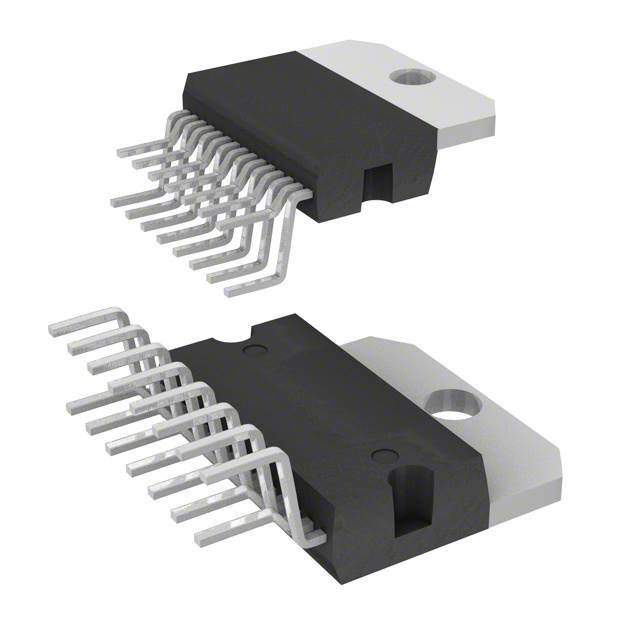

L9822E Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	15 Pin
Case/Package	Multiwatt-15
Supply Voltage (DC)	5.00 V
Number of Outputs	8 Output
Supply Current	10.0 mA
Number of Channels	8 Channel
Drain to Source Resistance (on) (Rds)	1.00 Ω
Fall Time (Max)	50 ns
Fall Time (Max)	50 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Width	17.5 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Lead Free
