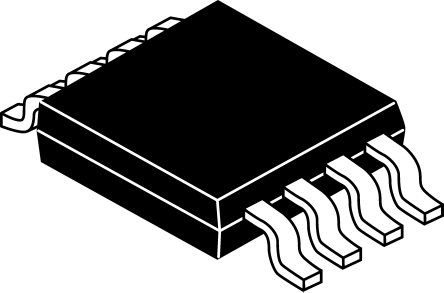

Image is for your reference only,please check specifications for details

NCV431BVDMR2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC88792171
Category:
Voltage Reference
Package:
TSSOP-8
Datasheet:
Datasheet 3D Model
Description:
Shunt Voltage Reference IC 36V ±0.4% 100mA 8-TSSOP, 8-MSOP (0.118", 3mm Width)
Stock Locations:
Availability:
302 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.24

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TL431, A, B integrated circuits are three-terminal programmable shunt regulator diodes. These monolithic IC voltage references operate as a low temperature coefficient zener which is programmable from V to 36 V with two external resistors. These devices exhibit a wide operating current range of 1.0 mA to 100 mA with a typical dynamic impedance of 0.22 . The characteristics of these references make them excellent replacements for zener diodes in many applications such as digital voltmeters, power supplies, and op amp circuitry. The 2.5 V reference makes it convenient to obtain a stable reference from 5.0 V logic supplies, and since the TL431, A, B operates as a shunt regulator, it can be used as either a positive or negative voltage reference.
Features
---
|
Programmable Output Voltage to 36 V
Voltage Reference Tolerance: +/- 0.4%, Typ @ 25°C (TL431B)
Low Dynamic Output Impedance, 0.22 W Typical
Sink Current Capability of 1.0 mA to 100 mA
Equivalent Full-Range Temperature Coefficient of 50 ppm/ °C Typical
Temperature Compensated for Operation over Full Rated Operating Temperature Range
Low Output Noise Voltage
Pb-Free Packages are Available
