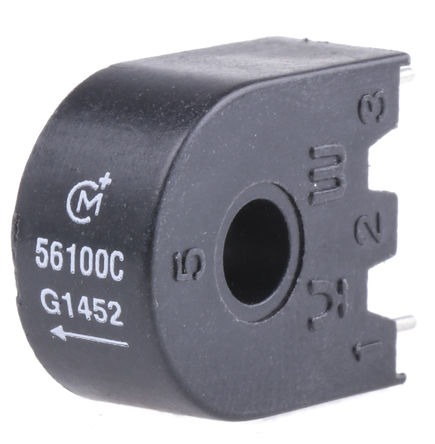

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 56100C is manufactured by Murata Power and is categorized in the Current Sense Transformers category. 56100C is described as CURR SENSE XFMR 10A T/H. Perfect Parts is a supplier of Transformers and other Miscellaneous.
56100C Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | SIP |
| Frequency | 20kHz ~ 200kHz |
| Current Rating | 10 A |
| Inductance | 30 mH |
| Input Current | 10 A |
| Isolation Voltage | 500 VDC |
| DC Resistance (DCR) | 1.4 Ω |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 16.79 mm |
| Size-Width | 8.89 mm |
| Size-Height | 20.19 mm |
| Weight | 5.900 g |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
