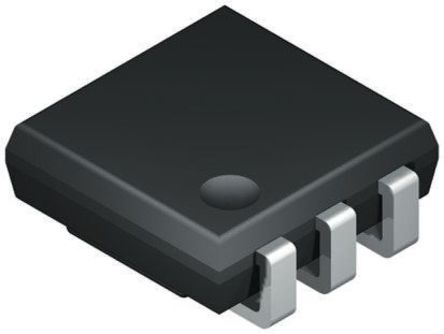

DS2413P+ - Maxim Integrated
Manufacturer:
Maxim Integrated
ManyChip's Part#:
MC5058134
Category:
Active Chip
Package:
TSOC-6
Datasheet:
Datasheet 3D Model
Description:
Programmable Timer, 1 Timer(s), PDSO6, 0.15INCH, ROHS COMPLIANT, TSOC-6
Stock Locations:
Availability:
218 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.08

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DS2413P+ is a 1-wire dual channel addressable switch in 6 pin TSOC package. This is a dual channel programmable I/O 1-wire chip. The PIO outputs are configured as open-drain and provide up to 20mA continuous sink capability and off-state operating voltage up to 28V. Control and sensing of PIO pins is performed with a dedicated device level command protocol. To provide a high level of fault tolerance in the end application, 1-wire IO and PIO pins are all capable of withstanding continuous application of voltages up to 28V max. Communication and operation of the DS2413 is performed with single contact Maxim/Dallas 1-wire serial interface. It is used in LED control, accessory identification and control, general purpose input/output, key-pick systems and industrial controllers.
Supply voltage range is 2.8V to 5.25V
Operating temperature range from 0°C to 70°C
Controls dual programmable high voltage, high current I/O port pins from a single micro port pin
On-resistance of PIO pull-down transistor 20 ohm max, OFF resistance 1Mohm min
Minimalist 1-wire interface lowers cost and interface complexity
Communicates to host with a single digital signal at 14.9Kb or 100Kbps
Switchpoint hysteresis and filtering to optimize performance in presence of noise
Factory lasered unique 64bit ROM serial number
High ESD immunity of 1-wire IO Pin, 8KV HBM typical
