Description
- The MX34 series compact non-waterproof Connector with a double row of contacts and are developed for automotive use. The up to 40 poles reduces mating and unmating force to 80N or less and improves workability. Furthermore, automotive connector requirements such as the preset type of double locking mechanism and box type of pin header are satisfied.
- Compact, lightweight, double row PCB-to-cable connector
- Socket contact with box-type pin header is durable to external force
- contact part is highly resistant to twisting and equipped with a proven double leaf spring
- Adoption of a preset-type retainer facilitates easy wire harness operation
- Lock spring is equipped with a bridge protecting the contacts from external load

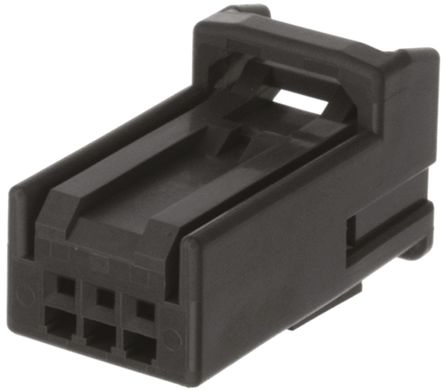

MX34003SF1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Case/Package | - |
| Number of Contacts | 3 Contact |
| Gender | Female |
| Contact Plating | Tin |
| Current Rating | 3 A |
| Insulation Resistance | 100 MΩ |
| Number of Rows | 1 Row |
| Number of Positions | 3 Position |
| Number of Mating Cycles | 50 Cycle |
| Current Rating (Max) | 3 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 10.8 mm |
| Size-Width | 10.8 mm |
| Size-Height | 12.2 mm |
| Color | Gray |
| Contact Material | Copper |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
| HK STC License | NLR |
