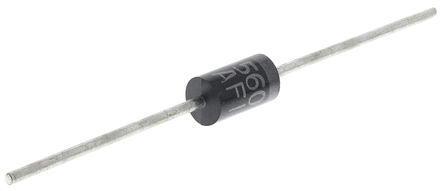

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SB560 is a metal to silicon Schottky Barrier Rectifier Diode for low voltage/high frequency inverters, free wheeling and polarity protection applications.
Low Power Loss
High Efficiency
High Current Capability
High Surge Capacity

Show

SB560 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-201AD
Voltage Rating (DC)	60.0 V
Current Rating	5 A
Output Current	5 A
Number of Positions	2 Position
Forward Voltage	670 mV
Polarity	Standard
Thermal Resistance	25℃/W (RθJA)
Forward Current	5 A
Max Forward Surge Current (Ifsm)	150 A
Maximum Forward Voltage (Max)	670 mV
Forward Current (Max)	5 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-50 ℃
Junction Temperature (Max)	150 ℃
	Show
Size-Length	9.53 mm
Size-Width	5.6 mm
Size-Height	9.5 mm
Weight	0.163293264 kg
Operating Temperature	-50℃ ~ 150℃
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
