NBB75DFIB - Neutrik
Manufacturer:
Neutrik
ManyChip's Part#:
MC13416895
Category:
RF Coaxial Connector, RF Connector
Datasheet:
Datasheet 3D Model
Description:
Adapter BNC female/female insulated [Neutrik] NBB75DFIB Adapter BNC female/female insulated
Stock Locations:
Availability:
194 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 11.51

Updated at 29/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

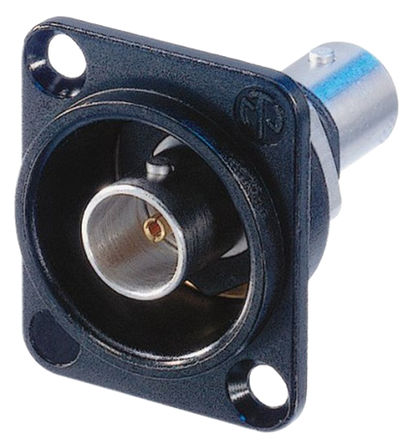

The NBB75DFIB from Neutrik is an isolated BNC female chassis connector. It offers a true 75ohm design for serial and digital (HD) signals. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use. The chassis connector is well protected in a D shape housing made of zinc die-cast with black chrome plating. The isolated panel mount solves potential grounding problems and prevents common-mode influence with other connections conducted over the same panel ground potential.
HD, SDI, video, AES/EBU, composite, YUV, RGB, RGBH, RGBHV signal types
Brass with gold plated cage type centre contacts, PTFE insert and polyacetal (POM) shell
Front mounting
True 75ohm design meets the stringent HD requirements
Greater than 1000 mating cycles
Bayonett locking device
Temperature range from -30°C to +85°C
Standard D shape housing provides flush mounting and protection from damage
Rated voltage is less than 50V
Dielectric strength is 1.5KVDC

Show

NBB75DFIB Specifications
