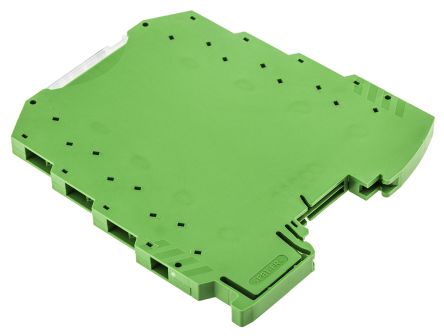

Image is for your reference only,please check specifications for details
Updated at 18/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Measuring temperatures, converting or isolating signals — No problem with the new analog range from Phoenix Contact. MINI Analog provides state-of-the-art technology for extreme flexibility and maximum ease of installation and configuration.
- The devices are supplied with power by simply plugging them onto the power supply bridge on the DIN rail. In addition, individual devices can be easily replaced during operation without the power being interrupted to the other devices.
- **Features:**
- * Test (Isolation) Voltage 1.5 kVAC
- * Supply Voltage: 19.2 to 30 VDC
- * Temperature Range: –20°C to +60°C
- * Transmission Error < 0.2%
- * Screw or Spring-Cage Connection System
- * Power Supply Bridge for Simple Handling
- * 6 mm Width
2864134 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Screw, DIN Rail |
| Number of Contacts | 8 Contact |
| Current Rating | 2 A |
| Current Rating (Max) | 2 A |
| Operating Temperature (Max) | 65 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Voltage Rating (Max) | 30 VDC |
| Operating Voltage (Max) | 30 VDC |
| Supply Voltage | 30 VDC |
| Show | |
| Size-Length | 102.5 mm |
| Size-Width | 6.2 mm |
| Size-Height | 93.1 mm |
| Color | Green |
| Operating Temperature | -20℃ ~ 65℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8538903000 |
| ECCN Code | EAR99 |
