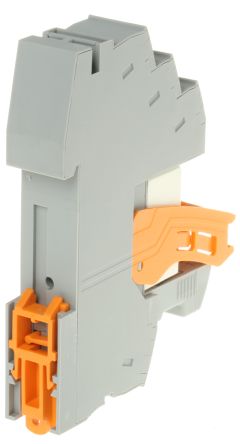

Image is for your reference only,please check specifications for details
- 2903342 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC10623037
-
Category:Industrial Relay
-
Package:-
-
Datasheet:Datasheet 3D Model
-
Description:Electromechanical Relay 24VDC 1.33KΩ 11A SPDT (( 16mm 75mm 93mm)) Plug-In Module Relay
-
Stock Locations:
-
Availability:43 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 7.36
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **RIF1 Power Relay Module**
- Professional range of power relays that come with a base, suppressor and retaining bracket that benefits from a universal plug in design.
2903342 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Number of Pins | 5 Pin |
| Case/Package | - |
| Voltage Rating (DC) | 250 V |
| Voltage Rating (AC) | 250 V |
| Contact Current Rating | 11 A |
| Coil Voltage | 24 VDC |
| Coil Current | 18 mA |
| Coil Resistance | 1.33 KΩ |
| Current Rating (Max) | 11 A |
| Coil Voltage (DC) | 24 V |
| Coil Power | 400 mW |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (DC Max) | 250 V |
| Voltage Rating (AC Max) | 250 V |
| Show | |
| Size-Length | 16 mm |
| Size-Width | 16 mm |
| Size-Height | 93 mm |
| Contact Material | Silver Nickel |
| Operating Temperature | -40℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
