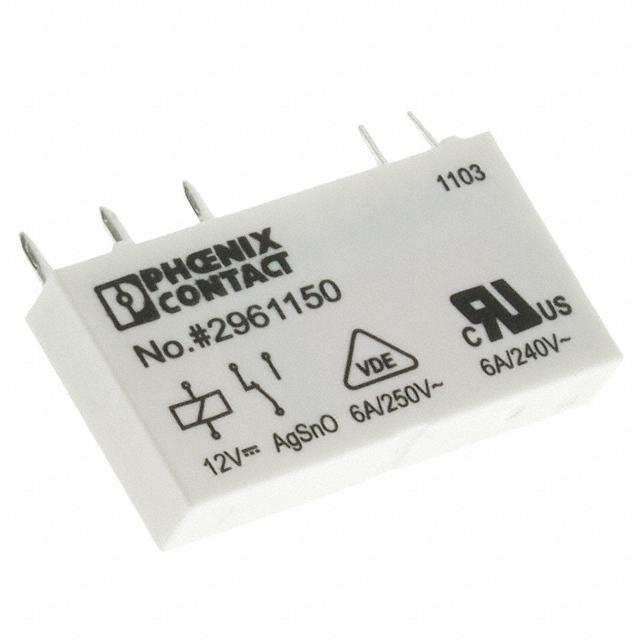

Image is for your reference only,please check specifications for details
- 2961150 - Phoenix
-
Manufacturer:Phoenix
-
ManyChip's Part#:MC71405807
-
Category:Power Relay
-
Package:SIP
-
Datasheet:Datasheet 3D Model
-
Description:Power/Signal Relay, SPDT, Momentary, 0.014A (Coil), 12VDC (Coil), 6A (Contact), 250VDC (Contact), DC Input, AC-DC Output, Through Hole-Straight Mount, ROHS COMPLIANT
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **PLC-RSC Series**
- PLC Interface single- and double-pole relays, and opto-couplers, having the same profile. This allows the modules to be installled in any configuration with a common bridging system and using the same accessories. The V8 adapter connects 8 relays or opto-couplers to a 15 way D-SUB cable.
2961150 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 5 Pin |
| Case/Package | SIP |
| Voltage Rating (DC) | 250 V |
| Voltage Rating (AC) | 250 V |
| Current Rating | 6 A |
| Contact Current Rating | 6 A |
| Coil Voltage | 12 VDC |
| Coil Current | 14 mA |
| Coil Resistance | 848 Ω |
| Current Rating (Max) | 6 A |
| Coil Voltage (DC) | 12 V |
| Input Power (Max) | 1.5 KVA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 250 VAC |
| Voltage Rating (DC Max) | 250 V |
| Voltage Rating (AC Max) | 250 V |
| Show | |
| Size-Length | 28 mm |
| Size-Width | 15 mm |
| Size-Height | 15 mm |
| Contact Material | Silver Tin Oxide |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536410050 |
| ECCN Code | EAR99 |
