Description
- Summary of Features:
- Individual control circuits for both outputs
- Filtered detection of under voltage supply
- All inputs clamped by diodes
- Off line gate clamping function
- Asymmetric undervoltage lockout thresholds for high side and low side
- Insensitivity of the bridge output to negative transient voltages up to -50V given by SOI-technology
- Ultra fast bootstrap diode
- Benefits:
- Space saving package
- Improved energy efficiency
- Customer Evaluation Board available

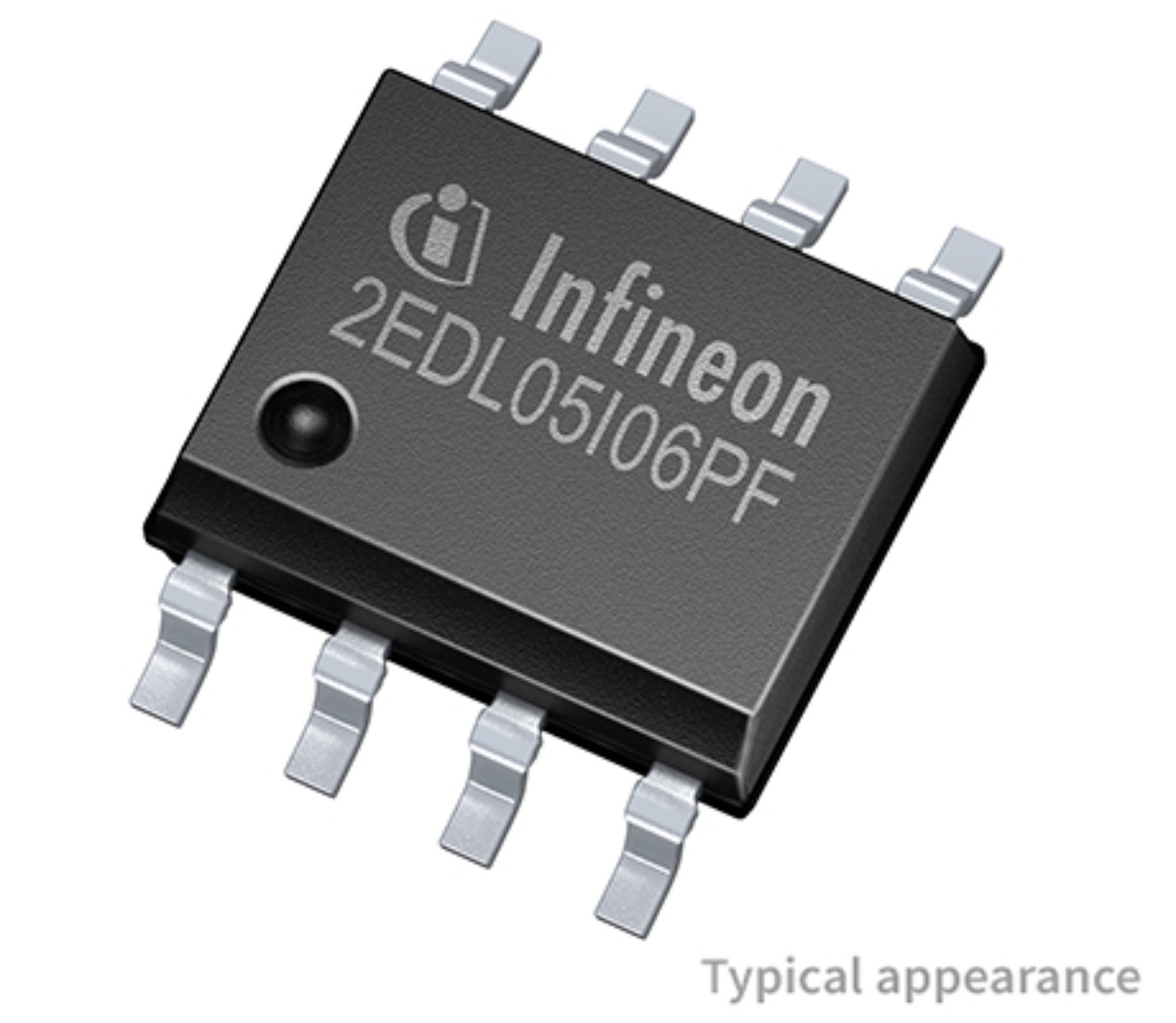

2EDL05I06PF Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | PG-DSO-8 |
| Number of Outputs | 2 Output |
| Power Dissipation | 600 mW |
| Fall Time (Max) | 30 ns |
| Fall Time (Max) | 80 ns |
| Power Dissipation (Max) | 600 mW |
| Show | |
| Size-Length | 4.9 mm |
| Size-Width | 3.9 mm |
| Size-Height | 1.75 mm |
| Operating Temperature | -40℃ ~ 95℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
