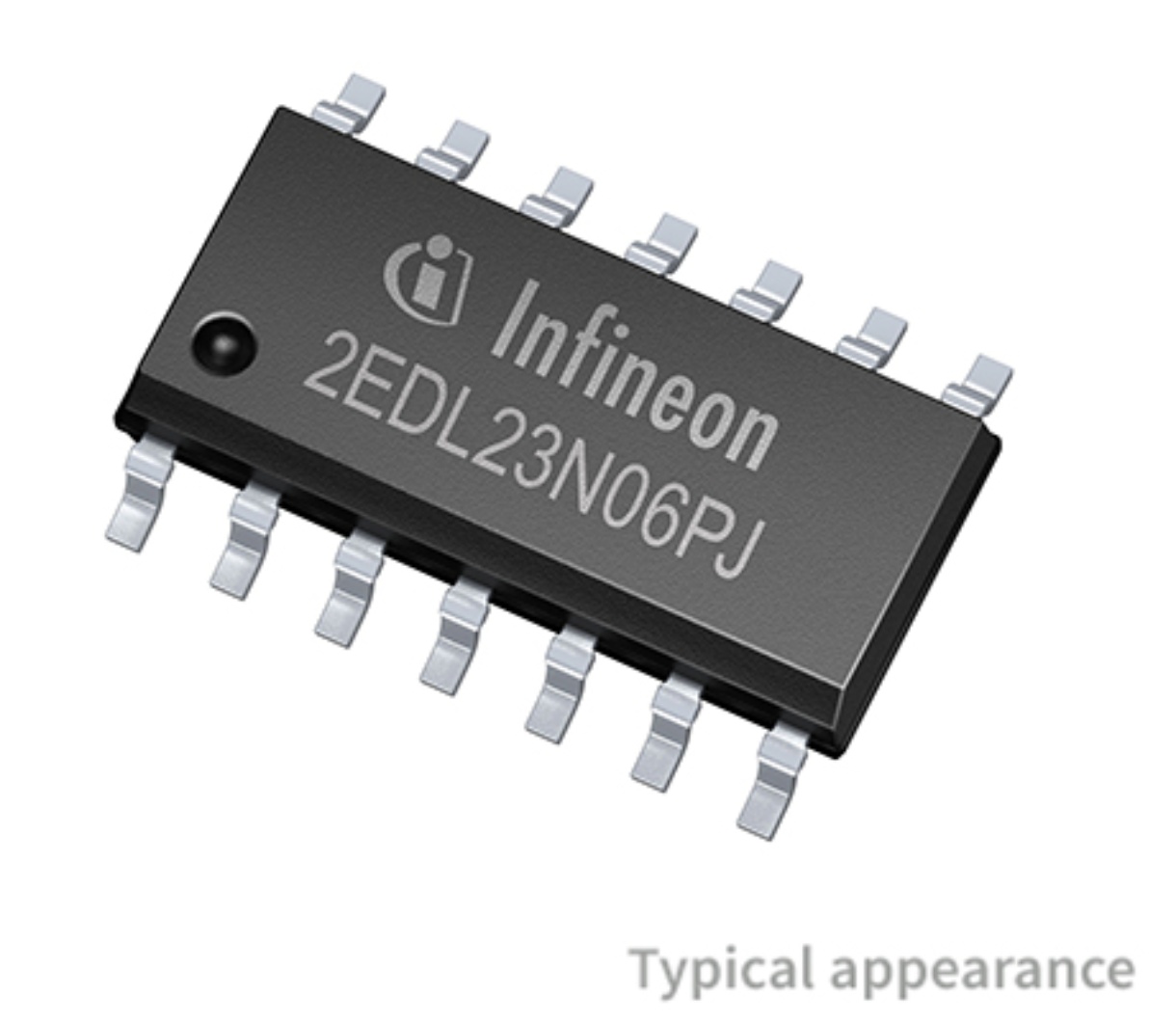

- 2EDL23N06PJ - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC25541581
-
Category:FET Driver
-
Package:PG-DSO-14
-
Datasheet:Datasheet 3D Model
-
Description:Infineon 2EDL23N06PJ, Dual MOSFET Power Driver 2.3A Half Bridge, 0 → 17.5V, Non-Inverting, 14Pin DSO
-
Stock Locations:
-
Availability:294 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.25
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Overcurrent comparator
- Enable function, Fault indicator
- Individual control circuits for both outputs
- Filtered detection of under voltage supply
- All inputs clamped by diodes
- Off line gate clamping function
- Asymmetric undervoltage lockout thresholds for high side and low side
- Insensitivity of the bridge output to negative transient voltages up to -50V given by SOI-technology
- Ultra fast bootstrap diode
- Benefits:
- Space saving package
- Improved energy efficiency
2EDL23N06PJ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 14 Pin |
| Case/Package | PG-DSO-14 |
| Number of Outputs | 2 Output |
| Rise Time | 80 ns |
| Input Bias Current | 100 µA |
| Fall Time | 60 ns |
| Operating Temperature (Max) | 150 ℃ |
| Show | |
| Size-Length | 8.75 mm |
| Size-Width | 4 mm |
| Size-Height | 1.25 mm |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
