Description
- Audio Frequency Low Noise Amplifier Applications
- • High voltage: VCEO= −120 V
- • Excellent hFElinearity: hFE(IC= −0.1 mA)/ hFE(IC= −2 mA) h= 0.95 (typ.)
- • High hFE: hFE= 200~700
- • Low noise: NF (2) = 0.2dB (typ.), 3dB (max) at f = 1 kHz
- • Complementary to 2SC3324
- • Small package
2SA1312 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |

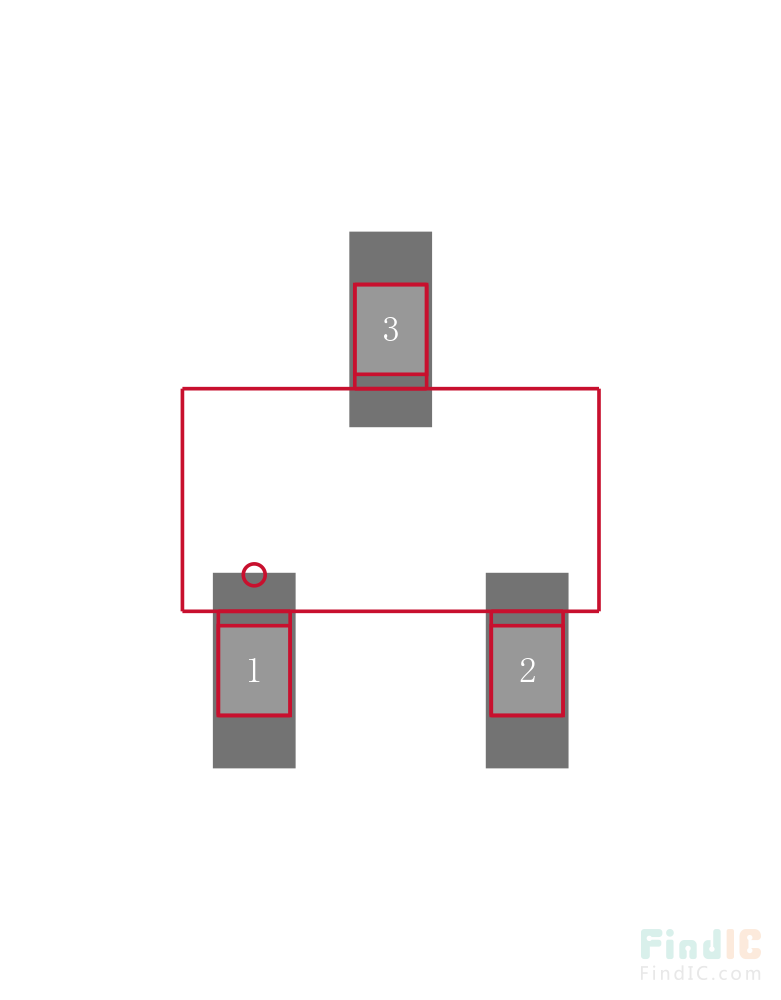

| Case/Package | SOT-23 |
| Polarity | PNP |
| Breakdown Voltage (Collector to Emitter) | 120 V |
| Continuous Collector Current | 0.1A |
| Show | |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
