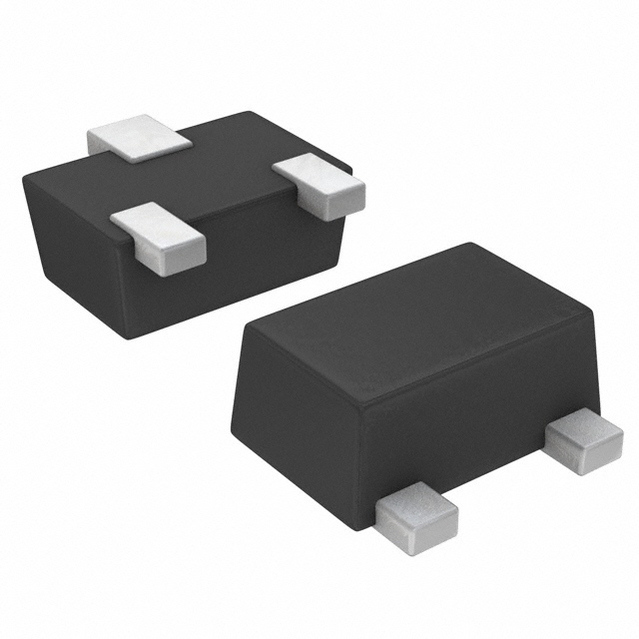

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

2SA2030T2L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	VMT-3
Frequency	260 MHz
Voltage Rating (DC)	-12.0 V
Current Rating	-500 mA
Power Rating	0.15 W
Polarity	PNP
Power Dissipation	0.15 W
Breakdown Voltage (Collector to Emitter)	12 V
Continuous Collector Current	0.5A
hFE Min	270 @10mA, 2V
hFE Max	680
Input Power (Max)	150 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	150 mW
	Show
Size-Length	1.2 mm
Size-Width	0.80 mm
Size-Height	0.50 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
