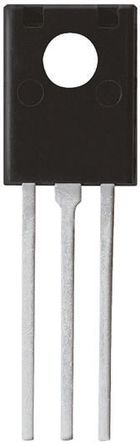

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Features
• High breakdown voltage
• Large current capacity
• Adoption of FBET and MBIT process
• The plastic-covered heat sink eliminates the need for an insulator when mounting the 2SA1507/2SC3902
Applications
• Color TV audio output, converters, inverters

Show

2SC3902T Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-126-3
Frequency	120 MHz
Polarity	NPN
Power Dissipation	1.5 W
Breakdown Voltage (Collector to Emitter)	160 V
hFE Min	100 @100mA, 5V
hFE Max	400
Input Power (Max)	1.5 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1500 mW
	Show
Size-Length	8 mm
Size-Width	3.3 mm
Size-Height	11 mm
Material	Silicon
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
