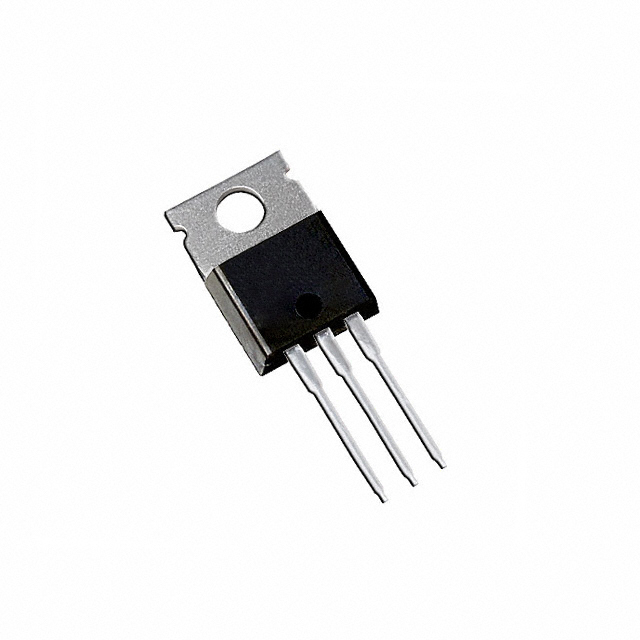

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

IRF3703 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220
Voltage Rating (DC)	30.0 V
Current Rating	210 A
Polarity	N-Channel
Power Dissipation	3.8 W
Part Family	IRF3703
Drain to Source Voltage (Vds)	30.0 V
Breakdown Voltage (Drain to Source)	30.0 V
Continuous Drain Current (Ids)	210 A
Rise Time	123 ns
	Show
Product Lifecycle Status	Active
Packaging	Rail, Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
