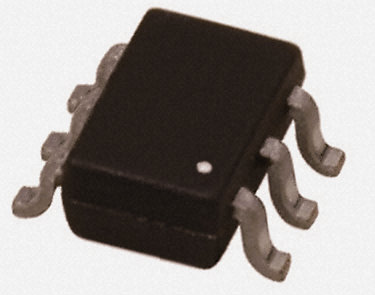

Image is for your reference only,please check specifications for details

FDC658AP - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC11090529
Category:
MOSFET, MOSFET Transistor
Package:
TSOT-23-6
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FDC658AP MOSFET Transistor, P Channel, 4mA, -30V, 0.044Ω, 10V, 1.8V
Stock Locations:
Availability:
10,119 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.2

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The FDC658AP is a logic level single P-channel MOSFET produced using Fairchild"s advanced PowerTrench® process. It has been optimized for battery power management, load switch and DC-to-DC conversion applications.
Low gate charge
High performance Trench technology for extremely low RDS (ON)

Show

FDC658AP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOT-23-6
Power Rating	1.6 W
Number of Positions	6 Position
Drain to Source Resistance (on) (Rds)	0.044 Ω
Polarity	P-Channel
Power Dissipation	1.6 W
Threshold Voltage	1.8 V
Drain to Source Voltage (Vds)	30 V
Breakdown Voltage (Gate to Source)	±25.0 V
Continuous Drain Current (Ids)	4.00 mA
Rise Time	12 ns
Input Capacitance (Ciss)	470pF @15V(Vds)
Input Power (Max)	800 mW
Fall Time	6 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1.6 W
	Show
Size-Length	3 mm
Size-Width	1.7 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
