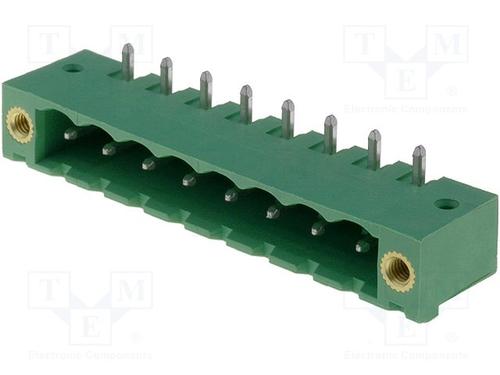

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Phoenix Contact CLASSIC COMBICON MSTB 5.08mm Terminal Block Headers**
- Professional range of Phoenix Contact MSTB series 5.0 mm pitch terminal block offering a 24-12 wire gage range
1776566 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Pin Pitch | 5.08 mm |
| Number of Contacts | 8 Contact |
| Contact Plating | Tin |
| Number of Rows | 1 Row |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 8 Position |
| Mounting Angle | 90.0 ° |
| Current Rating (Max) | 12 A |
| Voltage Rating (Max) | 320 V |
| Show | |
| Size-Length | 50.8 mm |
| Size-Width | 12.0 mm |
| Size-Height | 8.6 mm |
| Housing Color | Green |
| Color | Green |
| Housing Material | Plastic |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536694040 |
| ECCN Code | EAR99 |
