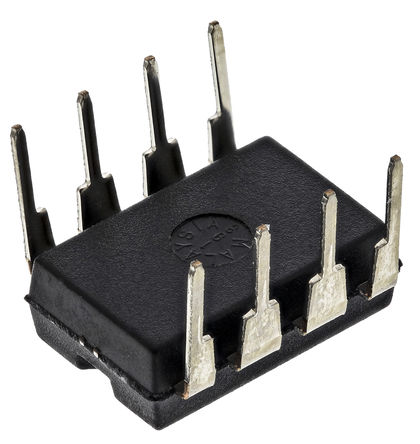

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The UC3845N is a Current Mode PWM Controller optimized for off-line and DC to DC converters. This device provides the necessary features to implement off-line or DC-to-DC fixed frequency current mode control schemes with a minimal external parts count. Internally implemented circuits include under-voltage lockout featuring start up current less than 1mA, a precision reference trimmed for accuracy at the error amp input, logic to insure latched operation, a PWM comparator which also provides current limit control and a totem pole output stage designed to source or sink high peak current. The output stage, suitable for driving N-channel MOSFETs, is low in the off state.
Optimized for off-line and DC to DC converters
Low start up current (<1mA)
Automatic feed forward compensation
Pulse-by-pulse current limiting
Enhanced load response characteristics
Under-voltage lockout with hysteresis
Double pulse suppression
High current totem pole output
Internally trimmed bandgap reference
Green product and no Sb/Br

Show

UC3845N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Frequency	450 kHz
Supply Voltage (DC)	25.0V (max)
Operating Voltage	8.4V ~ 30V
Power Rating	1 W
Number of Outputs	1 Output
Input Voltage (DC)	25.0 V
Output Voltage	13.5 V
Output Current	1 A
Supply Current	17 mA
Number of Channels	1 Channel
Number of Positions	8 Position
Input Current	11 mA
Power Dissipation	1 W
Quiescent Current	11.0 mA
Number of Regulated Outputs	1 Output
Rise Time	50 ns
Switching Frequency	500 kHz
Topology	Buck, Boost, Flyback, Forward
Duty Cycle	50 %
Output Voltage (Max)	5.1 V
Output Current (Max)	1000 mA
Maximum Duty Cycle	50 %
Fall Time	50 ns
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	7.6V ~ 30V
Supply Voltage (Max)	25 V
Supply Voltage (Min)	12 V
Input Voltage	25 V
	Show
Size-Length	9.81 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
