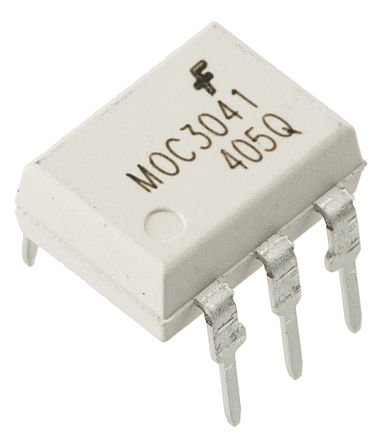

Image is for your reference only,please check specifications for details

MOC3041M - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC6894919
Category:
Optocoupler, Optoisolator
Package:
DIP-6
Datasheet:
Datasheet 3D Model
Description:
Optocoupler Triac AC Output 1Channel 400VDRM 6Pin Plastic Dip White Bulk
Stock Locations:
Availability:
10,474 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.34

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MOC3041M from Fairchild is a through hole zero cross triac driver output optocoupler in 6 pin DIP package. This device contains a GaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the function of a zero voltage crossing bilateral triac driver. This device is designed for interfacing logic system to equipment powered from 115VAC lines, teletypewriters, CRTs, solid state relays, industrial controls, printers, motor and solenoid and appliances.
Peak voltage blocking of 400V
Isolation voltage of 4.17KV
LED trigger current of 15mA at 3V terminal voltage
UL 1577 and DIN-EN IEC60747-5-5 approved
Operating temperature range from -40°C to 85°C

Show

MOC3041M Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	6 Pin
Case/Package	DIP-6
Input Voltage (DC)	1.25 V
Output Voltage	400 V
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	6 Position
Forward Voltage	1.25 V
Input Current	30.0 mA
Power Dissipation	250 mW
Isolation Voltage	7.5 kV
Holding Current	400 µA
Forward Current	60 mA
Input Voltage (Max)	1.5 V
Output Voltage (Max)	280 VAC
Input Current (Min)	60 mA
Reverse Breakdown Voltage	6 V
Maximum Forward Voltage (Max)	1.5 V
Forward Current (Max)	60 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	250 mW
Input Voltage	1.25 V
	Show
Size-Length	8.89 mm
Size-Width	6.6 mm
Size-Height	3.53 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
