Description
- The IDW75E60 is a Fast EmCon Diode offers low reverse recovery charge and low forward voltage. This 600V family has been primarily designed for motor drive applications up to 30kHz. For this reason, the outstanding features of the diode are softness and VF parameter. This results in diode that has excellent EMI behaviour and low conduction losses. The entire family has been qualified with a Tj (maximum) of 175°C.
- Lowest V F values
- Excellent trade-off on performance
- Low-conduction losses
- Easy paralleling
- Halogen-free

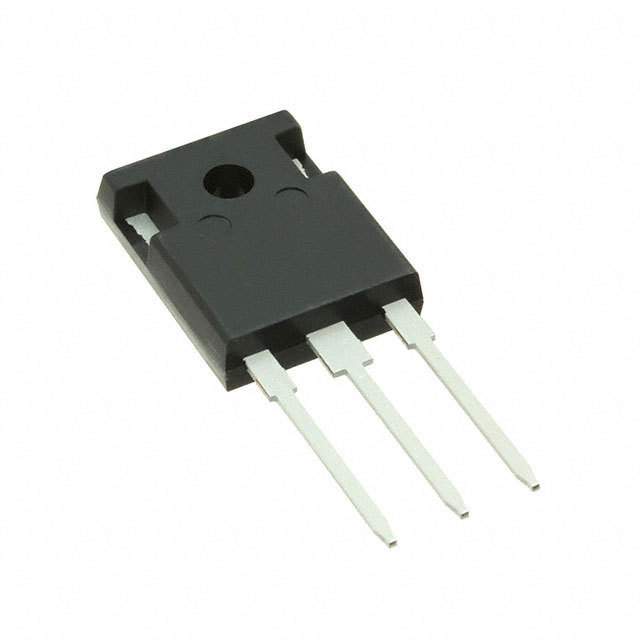

IDW75E60 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-247-3 |
| Forward Voltage | 2V @75A |
| Reverse recovery time | 121 ns |
| Forward Current | 120 A |
| Max Forward Surge Current (Ifsm) | 220 A |
| Maximum Forward Voltage (Max) | 2 V |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | 55 ℃ |
| Show | |
| Size-Length | 15.9 mm |
| Size-Width | 5.3 mm |
| Size-Height | 20.95 mm |
| Operating Temperature | -55℃ ~ 175℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
