TLV342SIRUGR - TI
Manufacturer:
TI
ManyChip's Part#:
MC38316451
Category:
Operational Amplifier, OP Amp IC
Package:
QFN-10
Datasheet:
Datasheet 3D Model
Description:

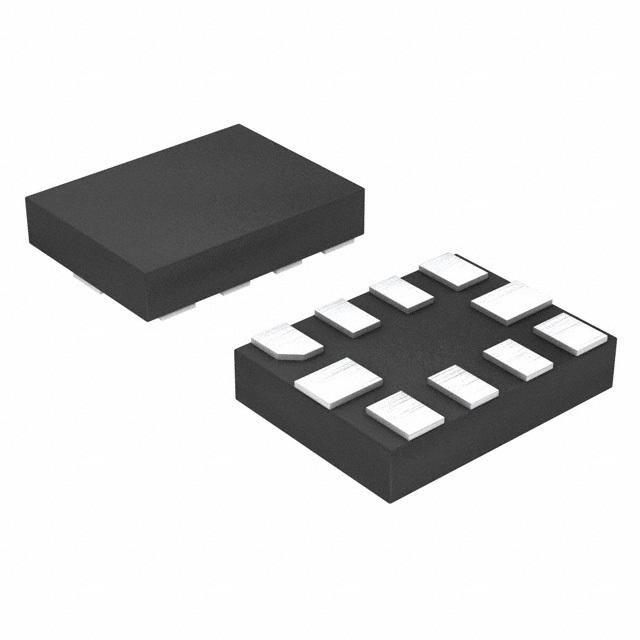

TEXAS INSTRUMENTS TLV342SIRUGR Operational Amplifier, Dual, 2 Amplifier, 2.2MHz, 0.9V/µs, 1.5V to 5.5V, QFN, 10Pins
Stock Locations:
Availability:
1,455 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.08

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLV34xx devices are single and dual CMOS operational amplifiers, respectively, with low-voltage, low-power, and rail-to-rail output swing capabilities. The PMOS input stage offers an ultra-low input bias current of 1 pA (typical) and an offset voltage of 0.3 mV (typical). For applications requiring excellent dc precision, the A grade (TLV34xA) has a low offset voltage of 1.25 mV (maximum) at 25°C.
These single-supply amplifiers are designed specifically for ultra-low-voltage (1.5 V to 5 V) operation, with a common-mode input voltage range that typically extends from 0.2 V to 0.5 V from the positive supply rail.
The TLV341 (single) and TLV342 (dual) in the RUG package also offer a shutdown (SHDN) pin that can be used to disable the device. In shutdown mode, the supply current is reduced to 45 pA (typical). Offered in both the SOT-23 and smaller SC70 packages, the TLV341 is suitable for the most space-constrained applications. The dual TLV342 is offered in the standard SOIC, VSSOP, and X2QFN packages.
An extended industrial temperature range from 40°C to 125°C makes the TLV34xx suitable in a wide variety of commercial and industrial applications.

Show

TLV342SIRUGR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	QFN-10
Supply Current	75 µA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Common Mode Rejection Ratio	75 dB
Input Offset Drift	1.90 µV/K
Bandwidth	2.2 MHz
Slew Rate	900 mV/μs
Gain Bandwidth Product	2.3 MHz
Input Offset Voltage	300 µV
Input Bias Current	1 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Gain Bandwidth	2.3 MHz
Minimum CMRR Range	75 dB
Supply Voltage	1.5V ~ 5.5V
	Show
Size-Length	1.5 mm
Size-Width	2 mm
Size-Height	0.37 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
