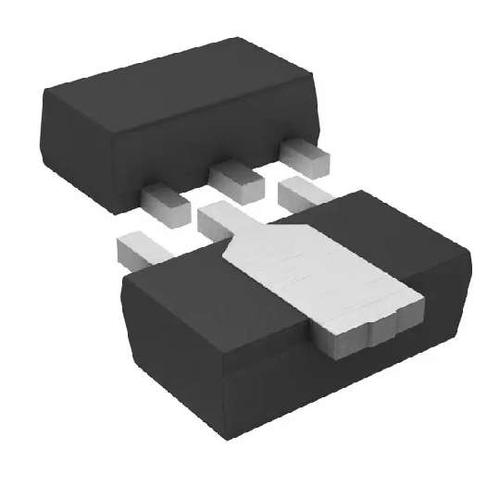

2SC5824T100R Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SC-62-3
Frequency	200 MHz
Voltage Rating (DC)	60.0 V
Current Rating	3.00 A
Power Rating	2 W
Number of Positions	3 Position
Polarity	N-Channel, NPN
Power Dissipation	500 mW
Breakdown Voltage (Collector to Emitter)	60 V
hFE Min	180 @100mA, 2V
hFE Max	390
Input Power (Max)	2 W
DC Current Gain (hFE)	120
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	2000 mW
	Show
Size-Length	4.50 mm
Size-Width	2.5 mm
Size-Height	1.50 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
