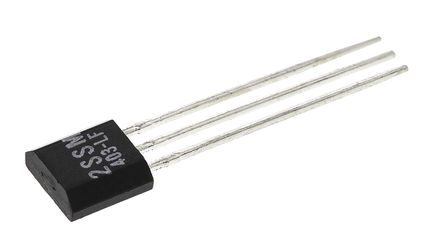

Image is for your reference only,please check specifications for details
- 2SS52M - Honeywell
-
Manufacturer:Honeywell
-
ManyChip's Part#:MC523500
-
Category:Magnetic Sensor
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:Magnetoresistive Sensor, 0.4mT Min, 2.5mT Max, 20mA, Plastic/epoxy, Rectangular, 3Pin, Through Hole Mount, PLASTIC, 3Pin
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Magneto-resistive material integrated on silicone. Can achieve large sensing distances when used with conventional magnets.
- Low gauss operation (typical op. 15 gauss)
- Digital current sinking
- Omni polar (N & S pole sensing)
- 0-100KHz
- Miniature package
- 3 pin in-line 0.1" centre
- Operating temperature range -40°C to +125°C
- Supply voltage 6 to 24V dc
2SS52M Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-92-3 |
| Supply Voltage (DC) | 24.0 V, 30.0 V (max) |
| Operating Voltage | 3.8V ~ 30V |
| Output Voltage | 0.4 V |
| Output Current | 20 mA |
| Supply Current | 11 mA |
| Number of Positions | 3 Position |
| Switching Current | 20 mA |
| Output Voltage (Max) | 400 mV |
| Output Current (Max) | 20 mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 3.8V ~ 30V |
| Supply Voltage (Max) | 30 V |
| Supply Voltage (Min) | 3.8 V |
| Show | |
| Size-Length | 4.52 mm |
| Size-Width | 0.178 in |
| Size-Height | 1.57 mm |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8542390000 |
| ECCN Code | EAR99 |
