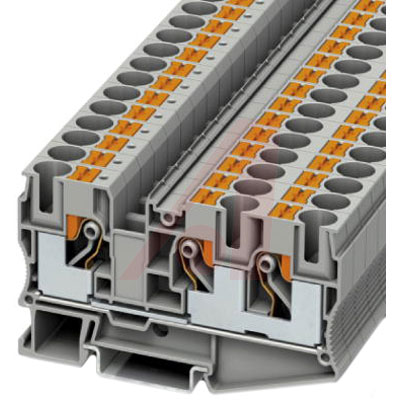

Image is for your reference only,please check specifications for details
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **PT Series Feed-Through Terminal Blocks**
- The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors. The compact design and front connection enable wiring in a confined space. In addition to the testing facility in the double function shaft, all terminal blocks provide an additional test connection.
3208746 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | DIN Rail |
| Number of Contacts | 3 Contact |
| Wire Gauge | 6AWG ~ 20AWG |
| Current Rating | 57 A |
| Number of Rows | 3 Row |
| Number of Circuits | 1 Circuit |
| Flammability Rating | UL 94 V-0 |
| Number of Positions | 3 Position |
| Current Rating (Max) | 57 A |
| Voltage Rating (Max) | 1000 V |
| Voltage Rating | 1 kV |
| Operating Voltage (Max) | 1000 V |
| Show | |
| Size-Length | 88.9 mm |
| Size-Width | 10.2 mm |
| Size-Height | 49.5 mm |
| Housing Color | Gray |
| Color | Gray |
| Product Lifecycle Status | Active |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
