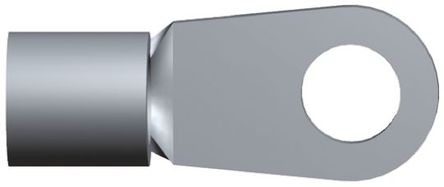

Image is for your reference only,please check specifications for details
- 322227 - TE Connectivity
-
Manufacturer:TE Connectivity
-
ManyChip's Part#:MC78247321
-
Category:Terminal
-
Datasheet:Datasheet 3D Model
-
Description:AMP - TE CONNECTIVITY 322227 Ring Tongue Terminal, M16, 5/8 ", SOLISTRAND Series, 4AWG, 125mm², Uninsulated
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 16/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Ring Terminal Connector 5/8 Stud Circular 4/0 AWG Crimp
322227 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Gender | Female |
| Wire Gauge | 4.00 AWG |
| Contact Plating | Tin |
| Orientation | Straight |
| Termination Style | Ring Lug, Ring |
| Operating Temperature (Max) | 170 ℃ |
| Show | |
| Size-Length | 69.39 mm |
| Size-Width | 32.38 mm |
| Size-Diameter | 15.9 mm |
| Size-Thickness | 2.59 mm |
| Color | Yellow |
| Contact Material | Copper |
| Material | Copper |
| Insulation Material | Non-Insulated |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Compliant |
| HTS Code | 8536904000 |
| ECCN Code | EAR99 |
