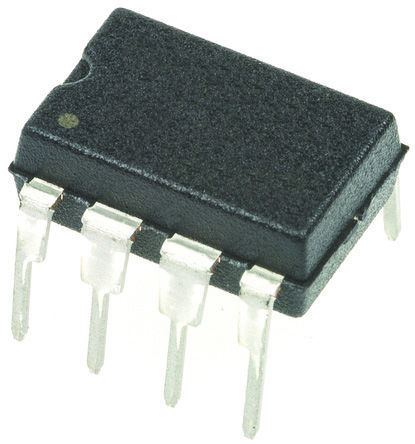

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- description
- The TLV2252 and TLV2254 are dual and quadruple low-voltage operational amplifiers from Texas Instruments. Both devices exhibit rail-to-rail output performance for increased dynamic range in single- or split-supply applications. The TLV225x family consumes only 34 µA of supply current per channel. This micropower operation makes them good choices for battery-powered applications.
- Output Swing Includes Both Supply Rails
- Low Noise . . . 19 nV/√Hz Typ at f = 1 kHz
- Low Input Bias Current . . . 1 pA Typ
- Fully Specified for Both Single-Supply and Split-Supply Operation
- Very Low Power . . . 34 µA Per Channel Typ
- Common-Mode Input Voltage Range Includes Negative Rail
- Low Input Offset Voltage
- 850 µV Max at TA = 25°C
- Wide Supply Voltage Range
- 2.7 V to 8 V
- Macromodel Included
- Available in Q-Temp Automotive
- HighRel Automotive Applications
- Configuration Control / Print Support
- Qualification to Automotive Standards
TLV2252AIP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | PDIP-8 |
| Output Current | ≤50 mA |
| Supply Current | 70 µA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Power Dissipation | 1 W |
| Common Mode Rejection Ratio | 70 dB |
| Input Offset Drift | 500 nV/K |
| Bandwidth | 187 kHz |
| Slew Rate | 120 mV/μs |
| Gain Bandwidth Product | 200 kHz |
| Input Offset Voltage | 200 µV |
| Input Bias Current | 1 pA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 0.2 MHz |
| Power Dissipation (Max) | 1000 mW |
| Minimum CMRR Range | 70 dB |
| Supply Voltage (Max) | 8 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 9.81 mm |
| Size-Width | 6.35 mm |
| Size-Height | 4.57 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
