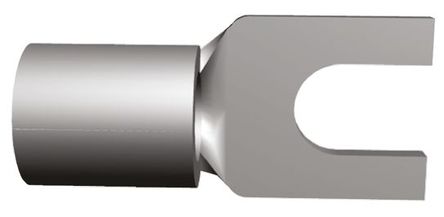

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

322451 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Gender	Female
Wire Gauge	10AWG ~ 12AWG
Contact Plating	Tin
Orientation	Straight
Termination Style	Fork, Spade
Operating Temperature (Max)	170 ℃
	Show
Size-Length	16.03 mm
Size-Width	7.16 mm
Size-Diameter	3.68 mm
Color	Tin
Contact Material	Copper
Material	Copper
Insulation Material	Non-Insulated
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8536904000
ECCN Code	EAR99
