Description

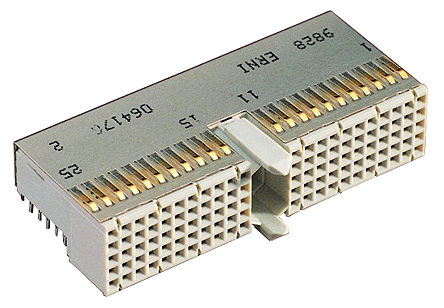

Solder ERNI Electronics" hard metric 354142 backplane connector to your printed circuit board to allow for fast serial bus communication between multiple boards. This F connector has 110 F contacts. It has a right angle body orientation. This is a 5-row connector. It has a female type gender. Its pitch is 2 mm. This product is 50 mm long, 12.25 mm tall and 24 mm deep. It uses the solder termination method.

Show

354142 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	-
Number of Contacts	110 Contact
Gender	Female
Current Rating	1 A
Number of Rows	5 Row
Current Rating (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Maximum Contact Resistance (Max)	20 mΩ
	Show
Size-Length	50 mm
Size-Width	24 mm
Size-Height	12.25 mm
Contact Material	Phosphor Copper
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
HK STC License	NLR
