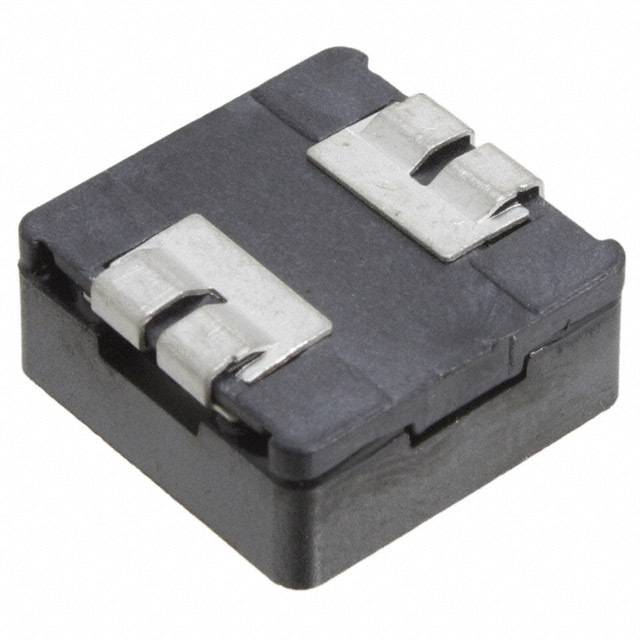

Image is for your reference only,please check specifications for details
- 3631B100ML - TE Connectivity
-
Manufacturer:TE Connectivity
-
ManyChip's Part#:MC57652900
-
Category:Inductor
-
Package:SMD
-
Datasheet:Datasheet 3D Model
-
Description:Inductor Power Shielded Wirewound 10uH 20% 1kHz 28Q-Factor Ferrite 3.3A 35mOhm DCR T/R
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 1625812-1, 3631B 10UH 20% FIO
3631B100ML Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | SMD |
| Current Rating | 3.3 A |
| Capacitance Tolerance | ±20 % |
| Inductance | 10 µH |
| Q-Factor | 28.0 |
| Resistance | 35.0 mΩ |
| Shielding | Yes |
| Inductance Tolerance | ±20 % |
| Test Frequency | 1 kHz |
| DC Resistance (DCR) | ≤35 mΩ |
| Current Rating (DC) | 3.3 A |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | 25 ℃ |
| Resistance (DC Max) | 0.035 Ω |
| Show | |
| Size-Length | 12.7 mm |
| Size-Width | 12.7 mm |
| Size-Height | 6 mm |
| Operating Temperature | -25℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | |
| ELV Compliant | Compliant |
| ECCN Code | EAR99 |
