Description

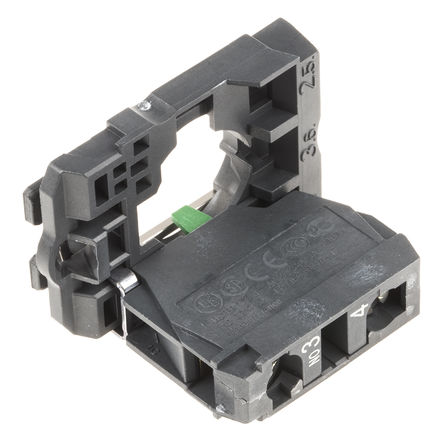

The ZB5AZ101 is a 1-pole 1NO Contact Block, suitable for XB5 series pushbutton switches. Screw clamp terminals. Easy and rapid assembly.

Show

ZB5AZ101 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Contact Current Rating	10 A
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-25 ℃
	Show
Material	Plastic
RoHS	RoHS Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
