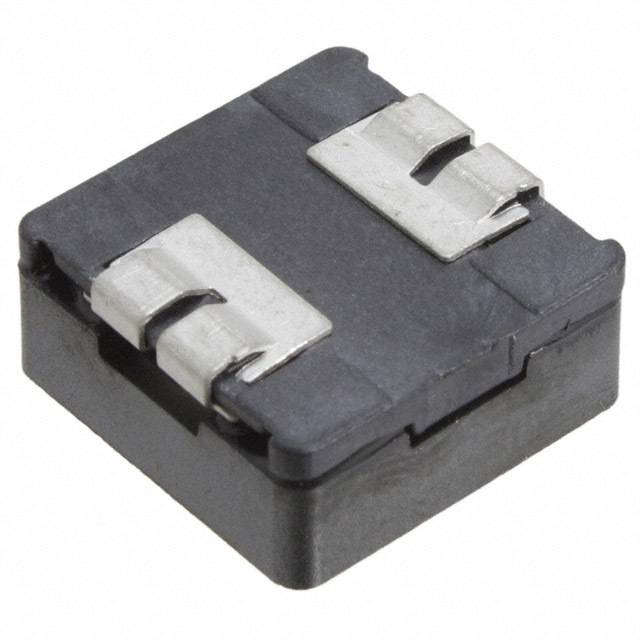

- 3631B101LL - TE Connectivity
-
Manufacturer:TE Connectivity
-
ManyChip's Part#:MC54291433
-
Category:Inductor
-
Package:SMD
-
Datasheet:Datasheet 3D Model
-
Description:Inductor Power Shielded Wirewound 100uH 15% 1kHz 20Q-Factor Ferrite 1.1A 220mOhm DCR T/R
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The 3631B101LL is a surface mount shielded Power Inductor with ferrite core, designed to handle high current and have been designed for use in SMD power circuits. With the superior ferrite core material and its low profile construction ensures excellent inductance characteristics coupled with proven Tyco Sigma quality. This inductor supports 1kHz test frequency and ±15% inductance tolerance.
- Very high current capability
- High reliability
3631B101LL Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package | SMD |
| Current Rating | 1.1 A |
| Capacitance Tolerance | ±10 % |
| Inductance | 100 µH |
| Q-Factor | 20.0 |
| Resistance | 220 mΩ |
| Shielding | Yes |
| Inductance Tolerance | ±15 % |
| Test Frequency | 1 kHz |
| DC Resistance (DCR) | ≤220 mΩ |
| Current Rating (DC) | 1.1 A |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Resistance (DC Max) | 0.22 Ω |
| Show | |
| Size-Length | 12.7 mm |
| Size-Width | 12.7 mm |
| Size-Height | 6.5 mm |
| Operating Temperature | -25℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | |
| ELV Compliant | Compliant |
| ECCN Code | EAR99 |
