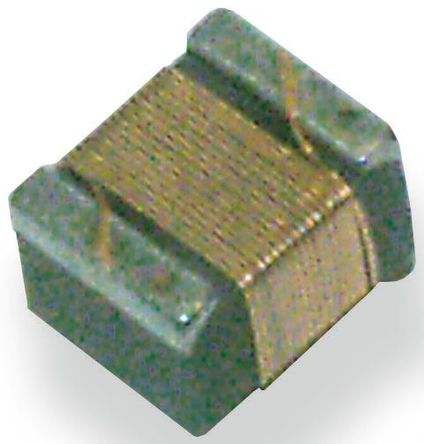

Image is for your reference only,please check specifications for details
- 36501JR15JTDG - TE Connectivity
-
Manufacturer:TE Connectivity
-
ManyChip's Part#:MC42782033
-
Category:Inductor Surface Mount
-
Package:0603
-
Datasheet:Datasheet 3D Model
-
Description:Inductor High Frequency Chip Unshielded Wirewound 150nH 5% 250MHz 32Q-Factor 280mA 950mOhm DCR 0603 T/R
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The 3650 Series is a new concept from Tyco Electronics, a range of inductors in values from 1 nH to 4.7 μH. The 3650 is available in four package sizes and is designed for automatic placement.
- **Features:**
- * Choice of Four Package Sizes
- * Wire Wound Construction
- * Smooth Top Aids Placement
- * 1 nH to 4.7 μH Value Range
- * Laboratory Design Kits Available
- * High Q Factor
- * High S.R.F.
- * Standard Tolerances
36501JR15JTDG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 2 Pin |
| Case/Package (SI) | 1608 |
| Case/Package | 0603 |
| Current Rating | 280 mA |
| Capacitance Tolerance | ±5 % |
| Inductance | 150 nH |
| Self Resonant Frequency | 1.3 GHz |
| Q-Factor | 32.0 |
| Resistance | 950 mΩ |
| Resonant Frequency | 1.30 GHz |
| Shielding | No |
| Inductance Tolerance | ±5 % |
| Test Frequency | 250 MHz |
| DC Resistance (DCR) | ≤950 mΩ |
| Current Rating (DC) | 280 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Resistance (DC Max) | 0.95 Ω |
| Show | |
| Size-Length | 1.8 mm |
| Size-Width | 0.8 mm |
| Size-Height | 1.02 mm |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | |
| ELV Compliant | Compliant |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8504508000 |
| ECCN Code | EAR99 |
